3 wheels mining truck/tricycle with hydraulic lifting

FOB Reference Price:Get Latest Price
$1,520.00 - $7,600.00 / Sets | 1 Set/Sets electric cargo dumper truck (Min. Order)
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Dimension(Long * Breadth * High):
3600*1200*1400mm
Condition:
New
Brand Name:
Fang-rui machinery
Place of Origin:
Henan, China (Mainland)
Type:
Mini Loader
Moving Type:
Wheel Loader
Rated Load:
2000kg
Certification:
ISO9001, ISO9001
Model Number:
ZY180
Product name:
Electric Mini Dumper
TIRE:
450-14/600-16
Driving type:
Electric
Body Type:
Open
power:
>800W
lifting system:
hydraulic
Box sizes:
1800*1200*500
max gradeability:
25 degree
inclination:
45 degree
After-sales Service Provided:
No overseas service provided
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Set/Sets per Year 3 wheel dump truck
Packaging & Delivery
Packaging Details
We take SKD / CKD and container packaging for 3 wheel dump truck/electric cargo dumper truck/new dumper truck from Qingdao.If you have special requirements, please mention that in advance.
Port
Shanghai,Qingdao or according to the customers' request
Lead Time :
Within 10 days after receiving deposit.
Product Description

3 wheels mining truck/tricycle with hydraulic lifting

    Most popular 3 wheel dump truck is our main product,using electric as power source in mining, brickyard, sanitation and cleaning. It has been improved many times with the advantage of large power,long work hours, heavy load and suitable for any road.

 Our products are loved and received very well in current market, we shall always provide you the best services. The following is the detail information of our 3 wheel dump truck.

Items
Parameters
Type
ZY180
ZY165
ZY155
Overall sizes (mm)
3600*1200*1400
3200*1100*1200
2600*900*1200
Box sizes
1800*1200*500
1700*1100*500
1500*900*400
Tread (mm)
1200
1000
850
Voltage
72V
60V
48V
Current
185Ah
165Ah
140Ah
Lifting Motor Power
1000W
1000W
1000W
Drive Motor Power
2000W
1500W
1000W
Workbench Height
720mm
700mm
600mm
Net Weight
1000kg
850kg
520kg
Loading Capacity
2000kg
1500kg
1000kg
Tire Type(F/R)
450-14/600-16
450-14/500-14
400-12/450-14
Operating Speed
3500 r/m
Thickness of Box
3-5mm
Charging Duration
First with 12 hours ,then normal with 8 hours
Working Hours
10-12hours with a full charge
Max Gradeability
25 degrees
Insulation Grade
Level B


3 wheel dump truck

Customer satisfaction is our eternal pursuit,
we accept any reasonable changes from our clients.


Main features of 3 wheel dump truck

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.

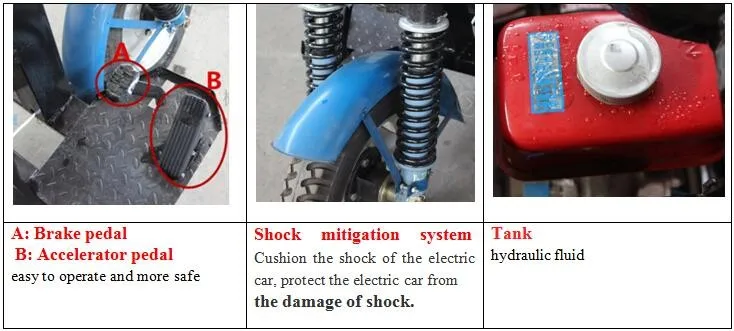

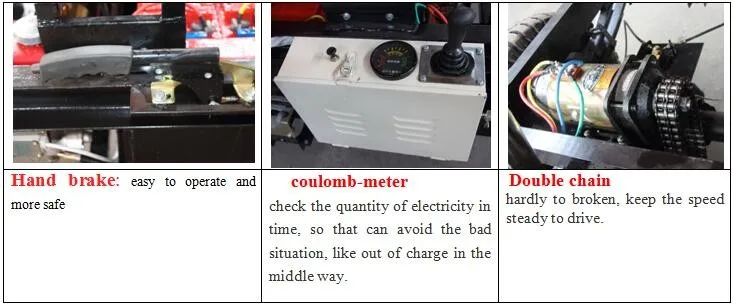

Detailed Images

Main features of 3 wheel dump truck

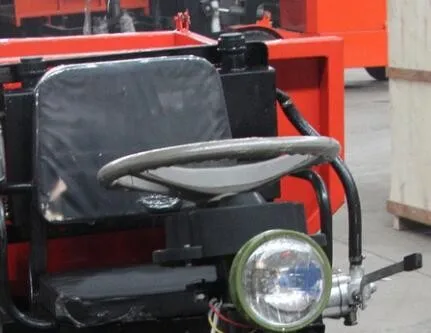

Operating direction：We have steering wheel and handle operating systems that can be selected according to your personal habits.

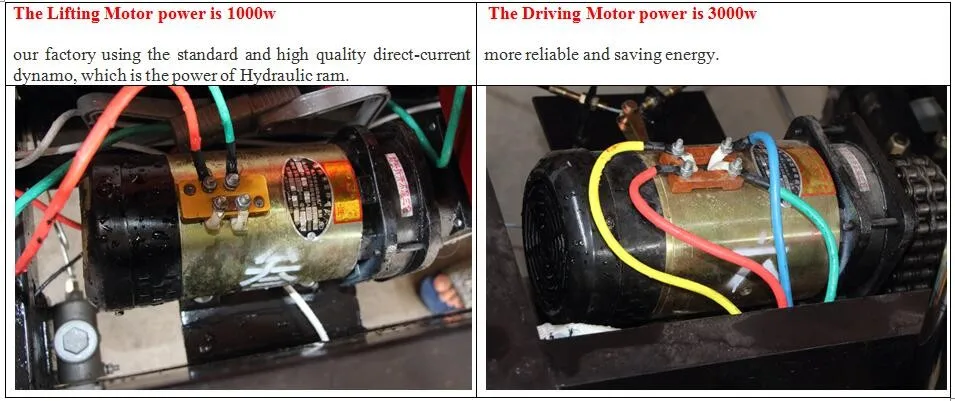

Hydraulic lifting system：equipted by a powerful lifting motor, the dump truck is safer during dumping rocks or other materials.

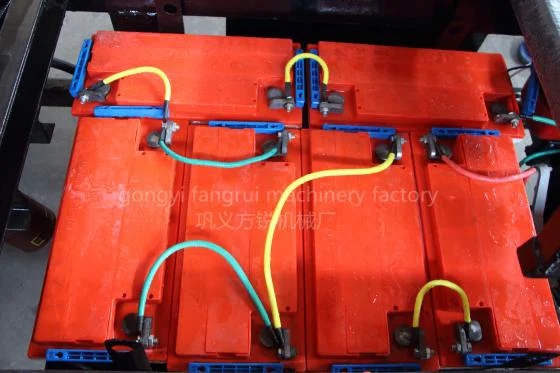

Battery: Equipped with high quality battery, it has powerful power, long life and durability. The noise during driving is very small, no exhaust gas is discharged, and the environment is not polluted.

And if you prefer diesel tricycle, we can also manufacture diesel type.


Wheel: Chaoyang is a very famous tire brand in China, The brand was established in 1958 and has been focusing on the production and manufacture of tires and rubber products. now it become the manufacturer in the world because of its high quality and durable feature.

Certifications

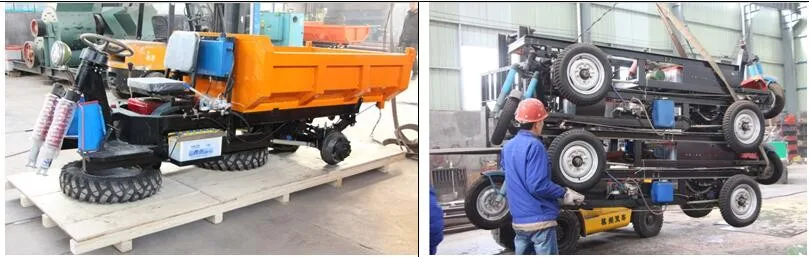

Packing & Delivery

Taking apart shipment:

this way can save more space, therefore save shipping cost.

After you receive the mini dumper tricycles, we will provide related installation videos , or arrange our engineers to service overseas.


Whole mini dumper shipping:

We have professional engineers to take in charge of shipments, set the minecart well, so as to ensure the safety of the minecart during transportation.
Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

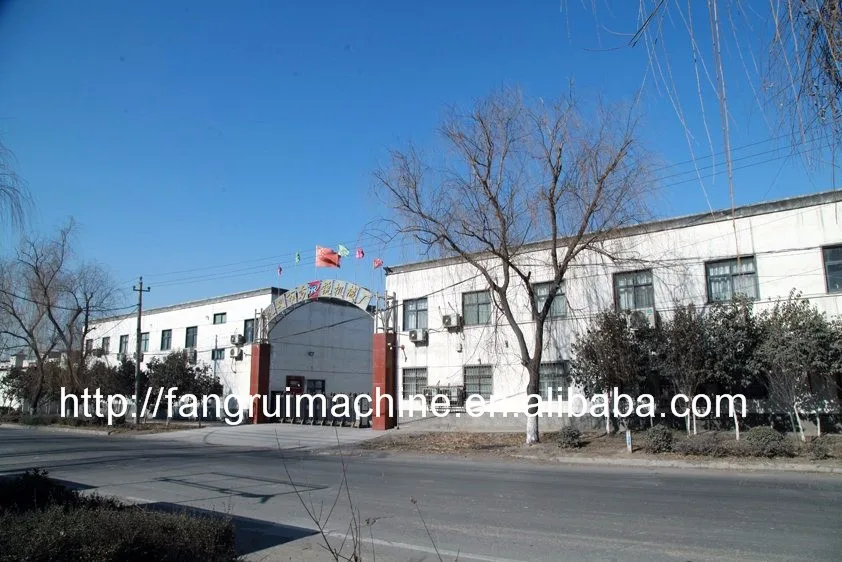

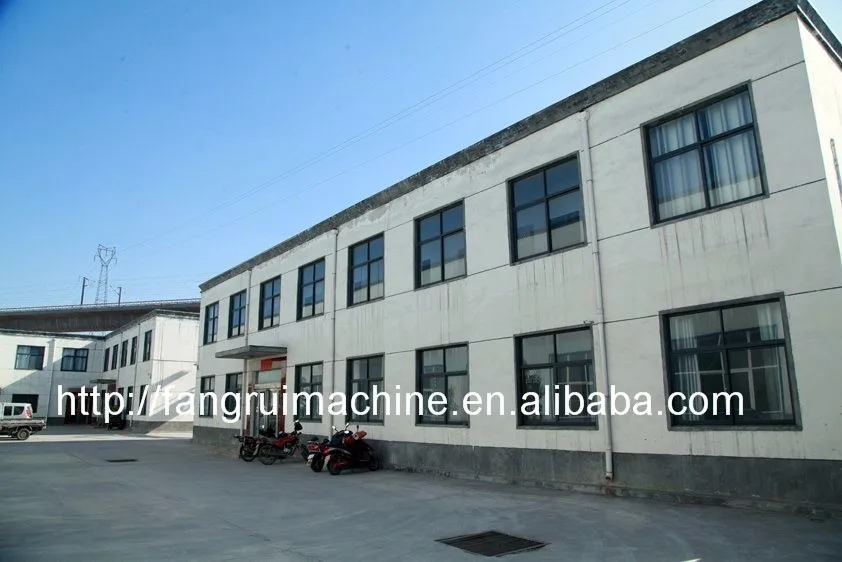

Our Company

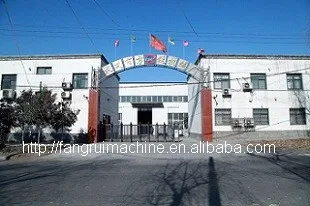

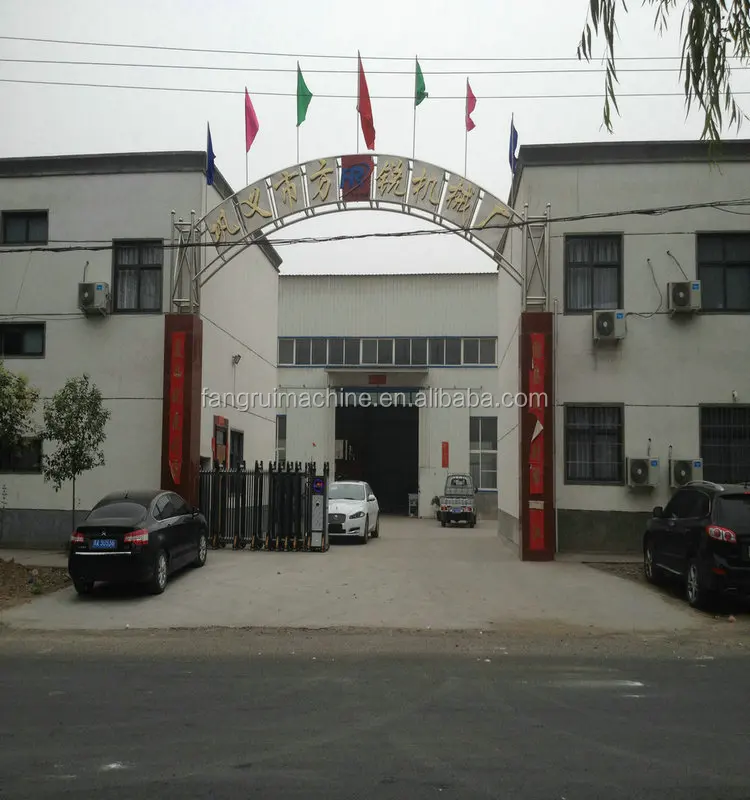

Welcome to FangRui

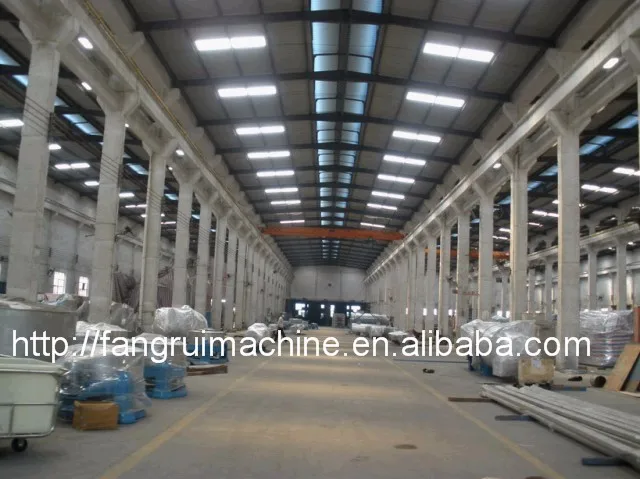

We sincerely welcome you to visit our factory.
